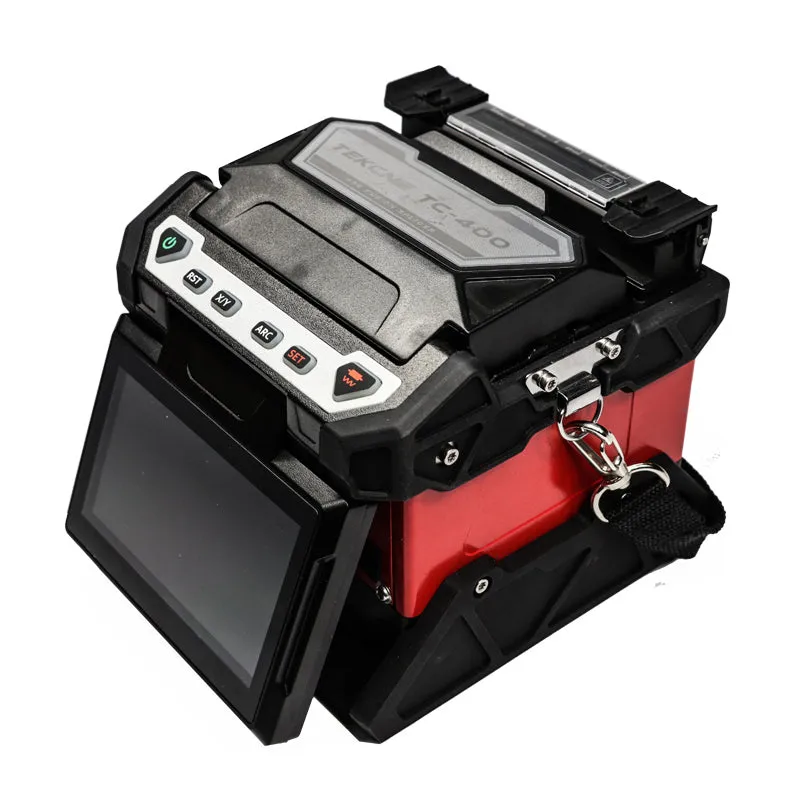

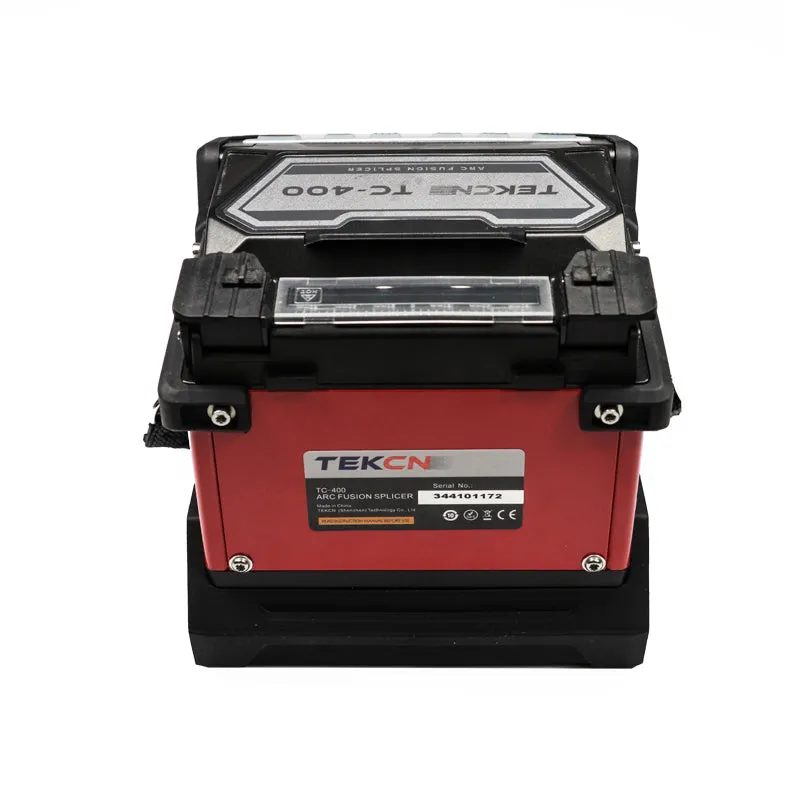

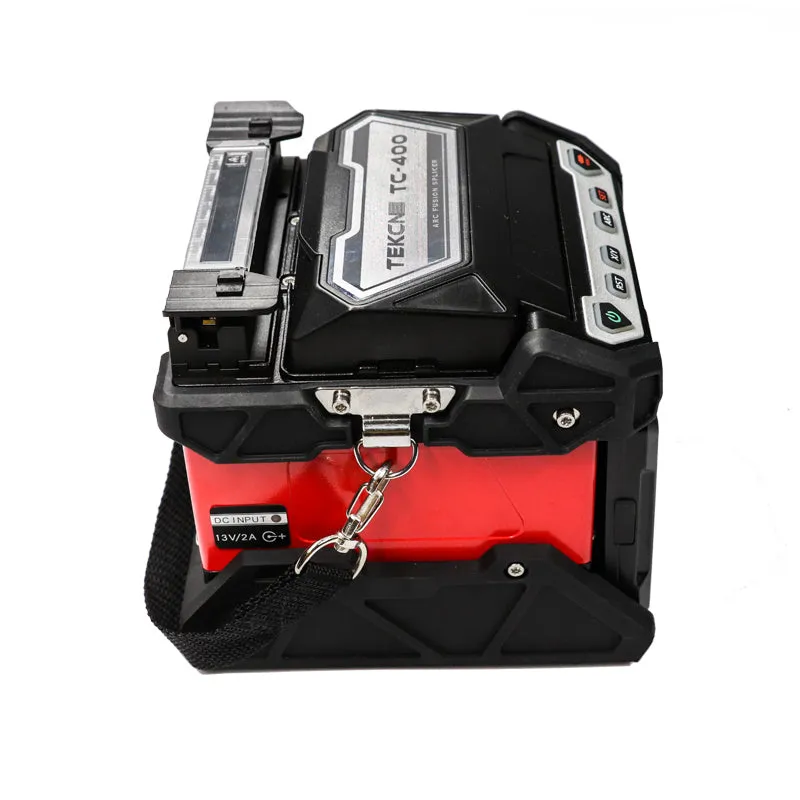

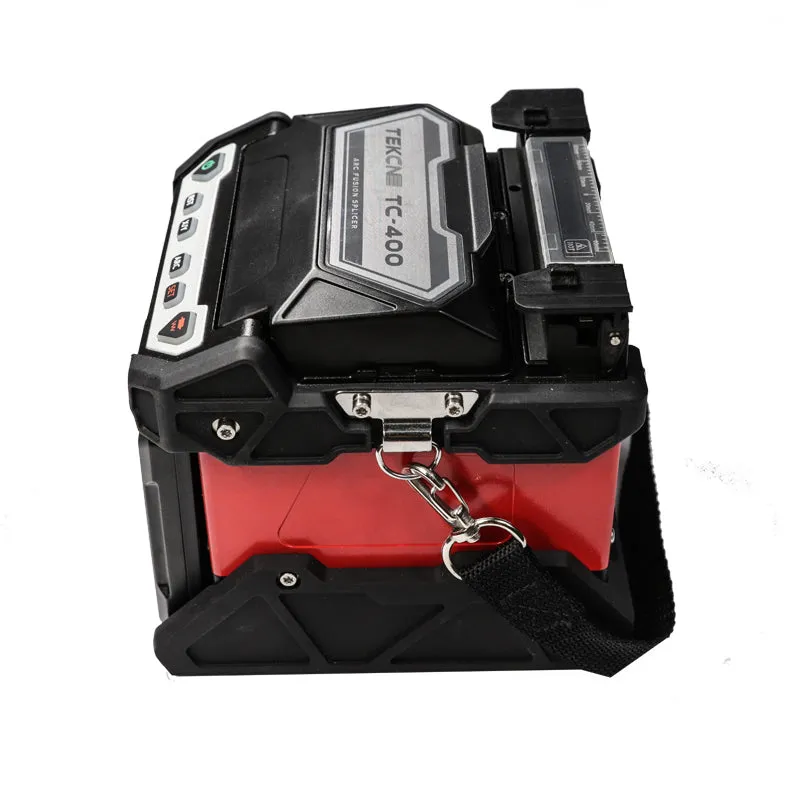

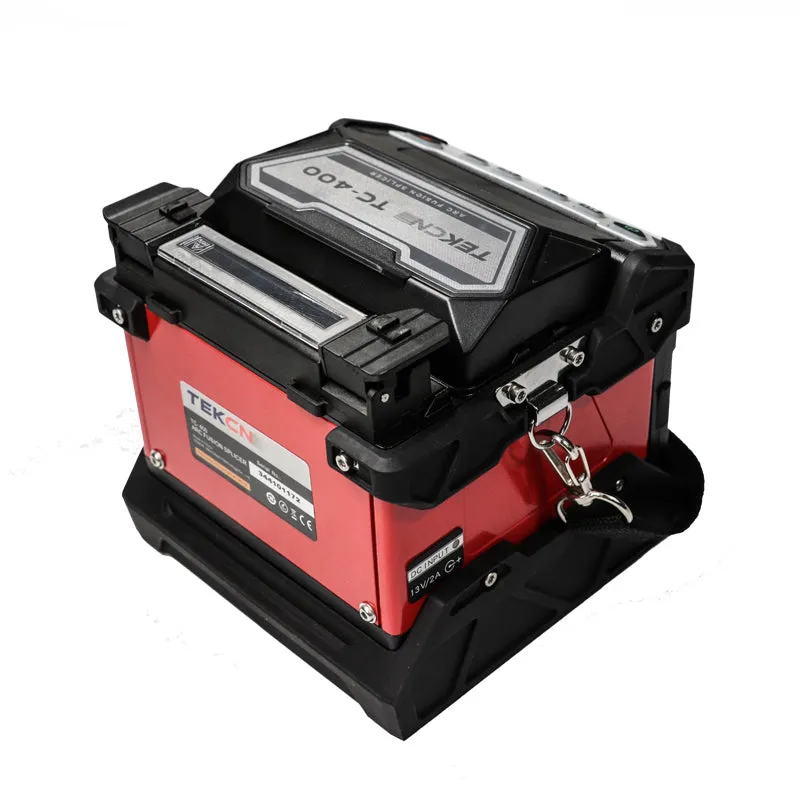

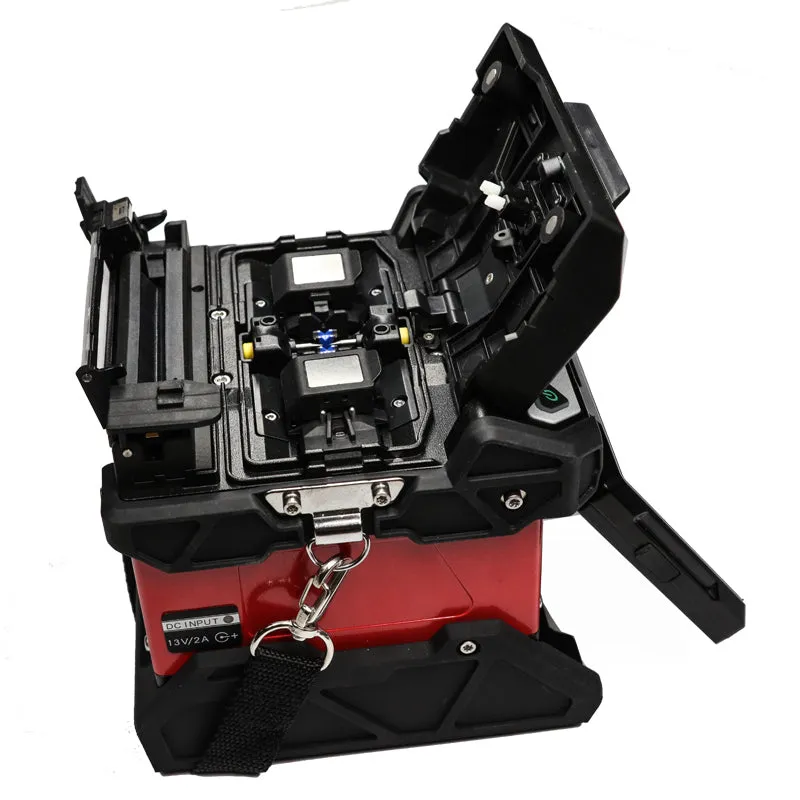

Fusion Splicing TEKCN TC-400i Ftth Fusion Splicers
Fusion Splicing TEKCN TC-400i Ftth Fusion Splicers
Title:
  • DefaultTitle

$ 66.95

$ 51.50

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details


Promotion price only usd950/set TO Brazil


TEKCN TC-400i FTTH Fiber Optic Free shipping

Splicing time 7 sec., heating time 9 sec.

Up to X/Y 760x magnification

Over 240 times splicing and heating

Compact and lightweight

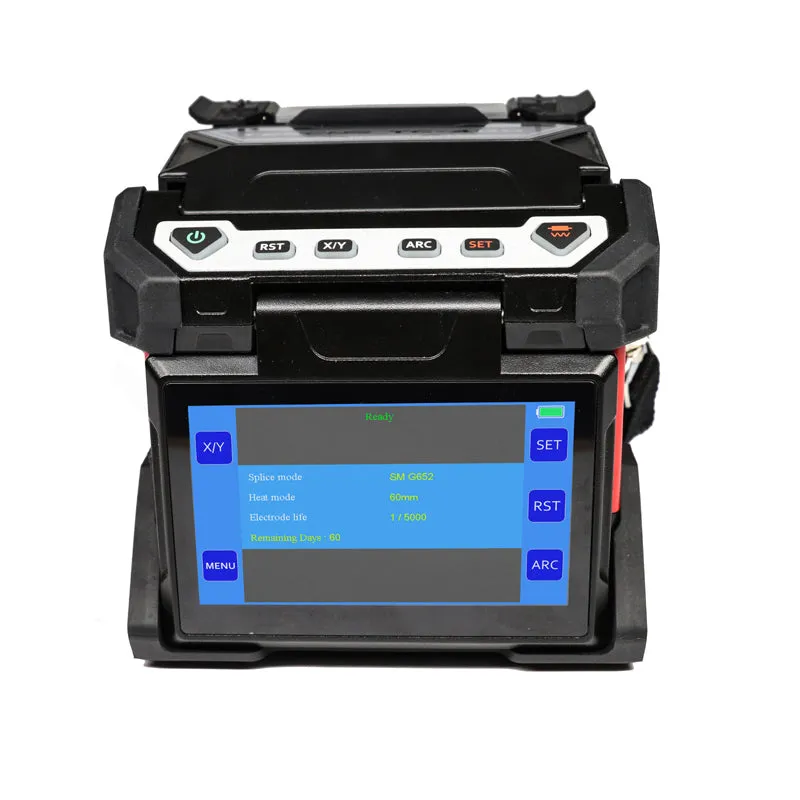

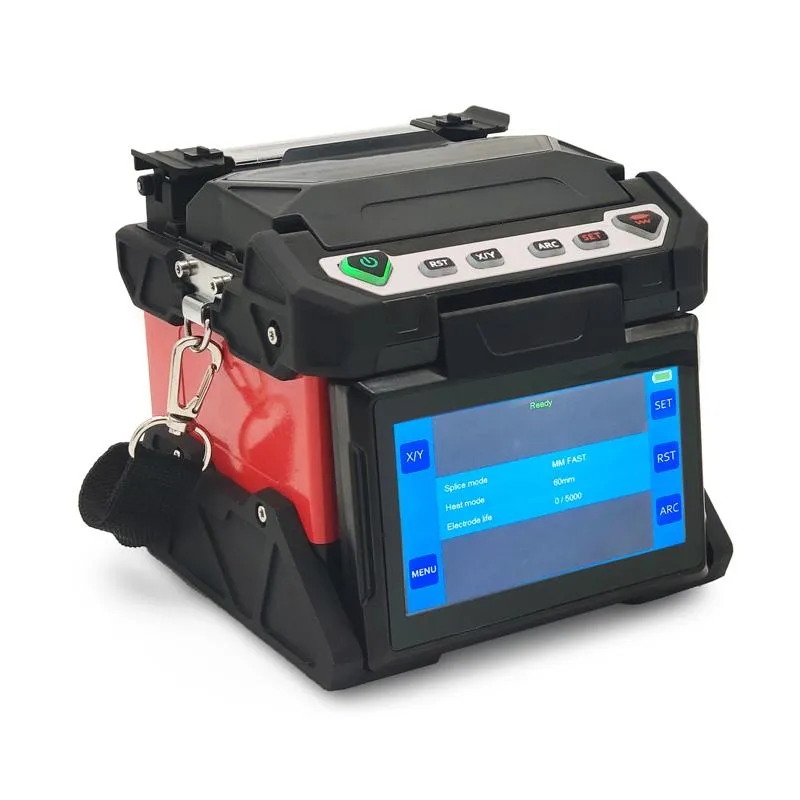

Full HD capacitive touchscreen





Speicifications

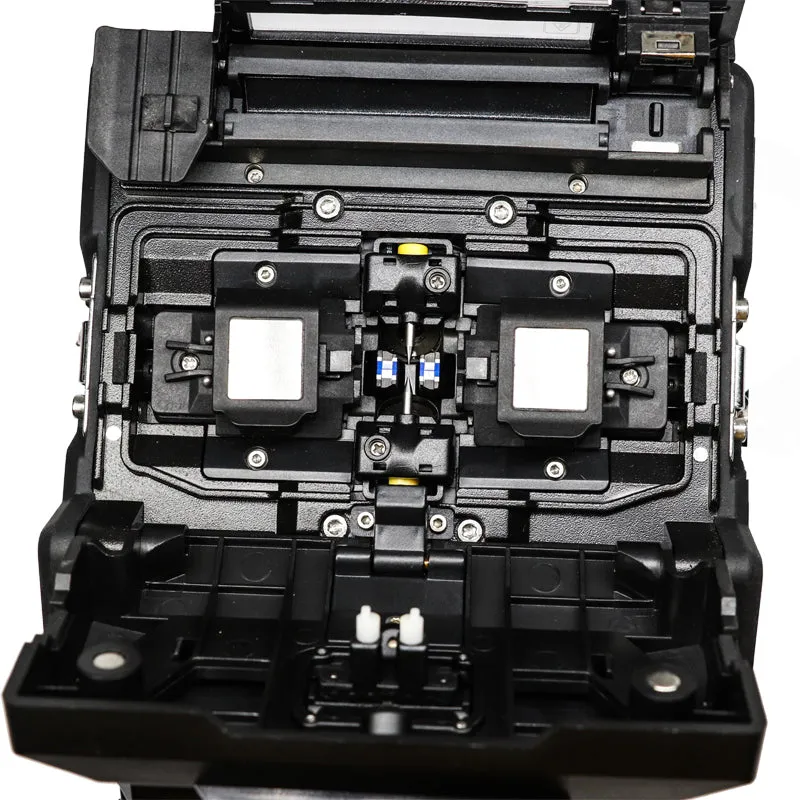

Fiber alignment

core to core alignment

Applicable fibers

Single/SMF(G.652/657), MMF(G.651), DSF (G.653), NZDSF (G.655), BI(G,657)

Cladding dia.

80-150pm /100-1000pm

Sheath dia.

8-16mm

Cleave length

5mm to 16mm with sheath clamp

Splice mode

Total 100 modes, supports self-defined mode and parameter

Typical splice time

7 sec. SM FAST

Typical splice loss

0.02dB(SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS)and 0.02dB(BI)

Return loss

»60dB

Heating mode

Max. 20

Heating time

9 sec.

Applicable protection sleeve

10~60mm

Splice result storage

Last 20,000 splices

Splice image storage

Max.800

Viewing methods

2 axis CMOS camera with 4.73u HD color capacitive touchscreen

Magnification

Supports X/Yor both X and Y simultaneously, maximum up to 760X magnification

Port

MicroSD and USB port for software upgrade / data management

Electrode life

Typical 5000 splices

Battery compacity

4000mAh battery, more than 240 times splicing and heating; Standard charging time 3 hours (up to 80%electric quantity in 2 hours)

Power supply

AC100-240V,50/60Hz

Tension test

2N

Operating condition

Altitude : Oto 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity :0to 95%RH

Storage condition

Humidity: 0 to 95%RH Temperature: -10to 80deg C(Battery: -10 to 40deg C)

Size/weight

133Wx 144Dx 133H (mm)/1.5kg (1.8kg including battery)






Applictation

----------------------------------------------------------------------------------------------

We keep lots in stock, If you need more, please contact us directly!


Condition:  - Brand New .
Warranty Service :   - 12 months .

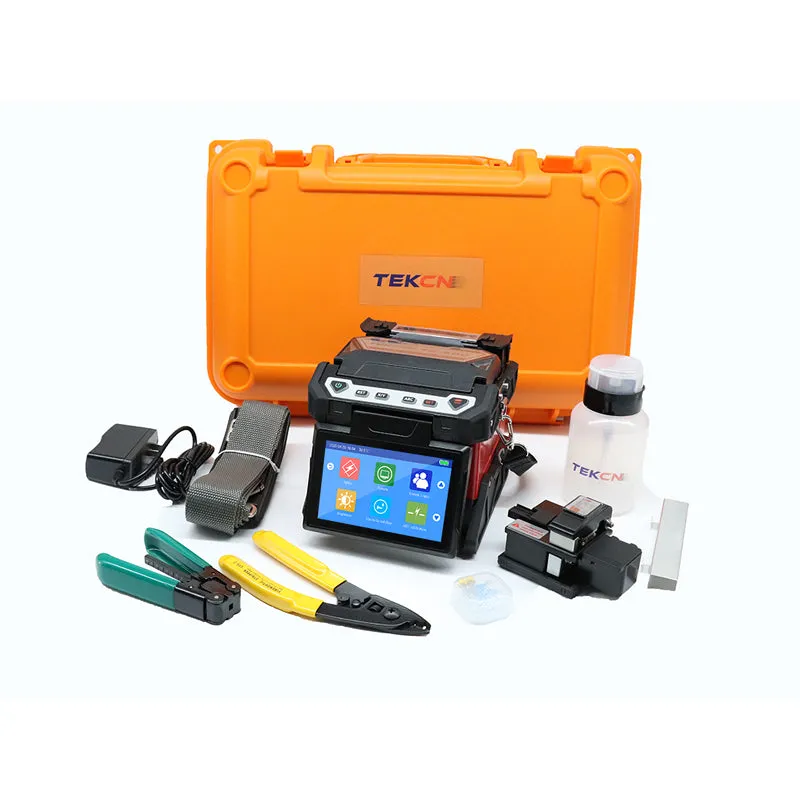

Package includes:  - standard package with accessories,  in carton.


Shipping:We are shipping the goods to every country of the world!
Usually the goods will be sent within 5 working days after payment, the shipping time depends on your country of residence, depending on your country's customs!

if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!



Payments :

Payment method:   Paypal, Wire transfer,  EscrowBuyer is under obligation if (in case) the item is liable to your country's customs duties.
We are not responsible for your country's any taxe or customs fee.
Our prices do NOT include any customs duty or tax.
Please verify it.


Return Policy :
All returns must be informed before returning.


Feedback Policy :
When you receive it, we sincerely hope that you will like it and appreciate our
customer services.
If you are pleased with your purchase, please leave us positive feedback once receiving the item, and we will return the feedback upon you.
If you have any problem with the outcome of the transaction or product, please don't respond with negative feedback before contacting us.So we can know what we should do to help you.
In the meantime, we will get to know where we should improve. we will do our best to resolve your case asap.


Contact us for details before you bid, in case any misunderstanding,
THANK YOU!!
